Road Marking Glass Bead Guns

SKU: 23.9087419  /  Product Availability: Yes  /   Manufacturer: VEZOS

HF Glass bead guns, offer versatile set up and assembly on any line striper or road marking vehicle due to their compact size. With an easy maintenance system and multiple tip sizes for you to choose from.





Back to: Line Striping Accessories

Get Price Online Catalog Video



HF PRESSURIZED GLASS BEAD GUNS

Road marking applications:

Compact & light design. Ideal for multiple gun set up on truck mounted line striping machines.
Robust, long lasting and with an easy maintenance system.

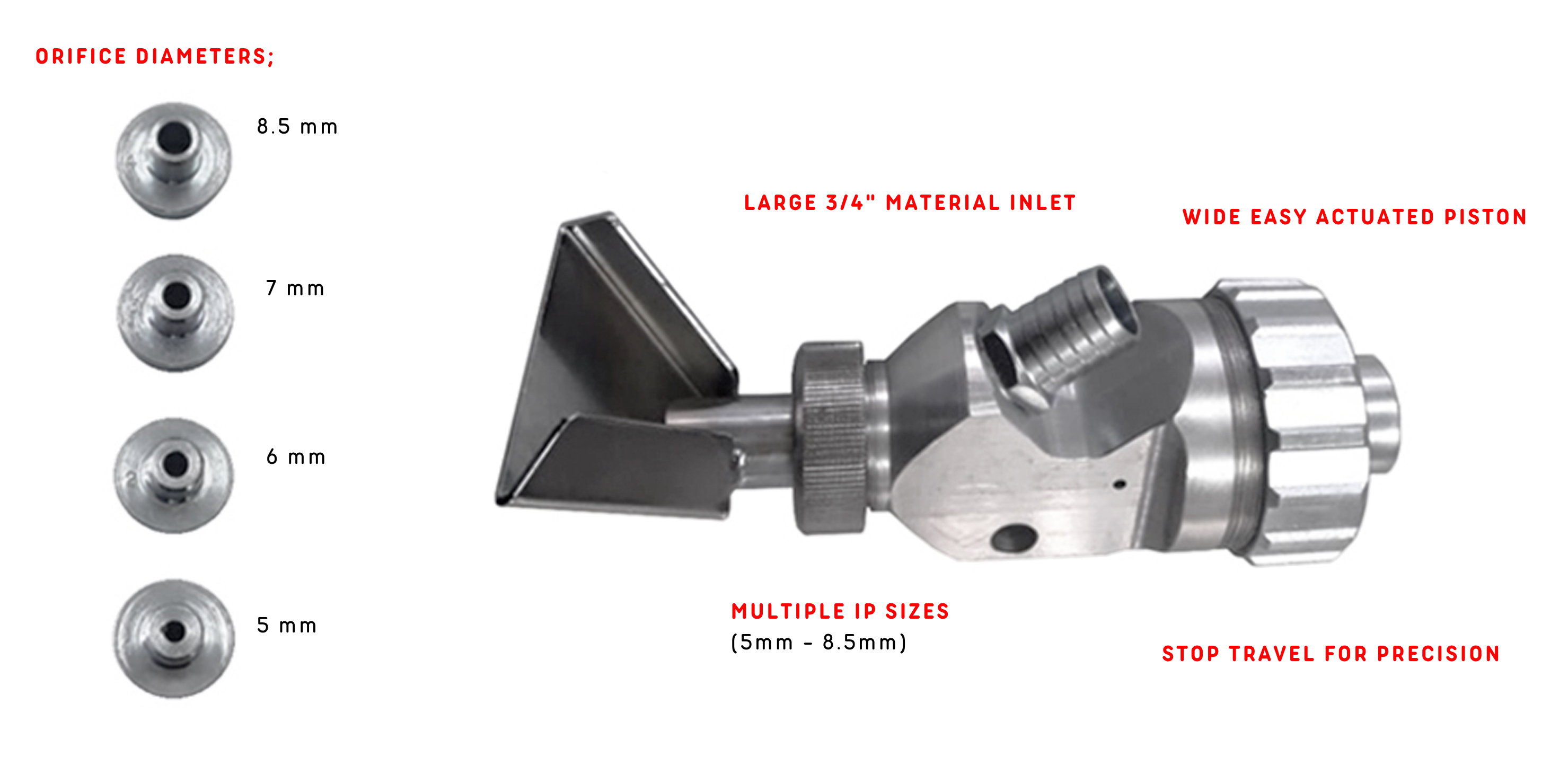

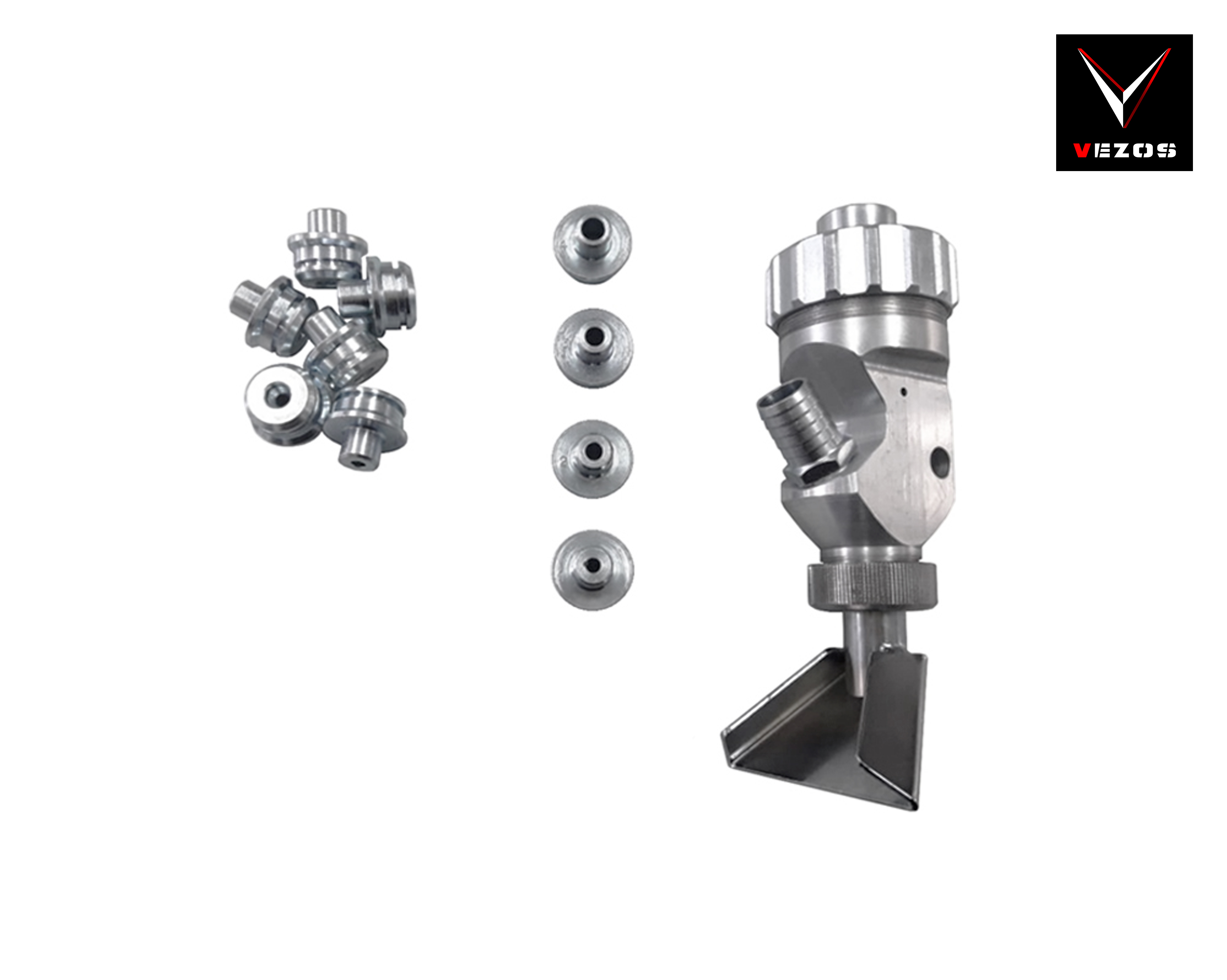

HF GLASS BEAD GUN

Full Kit SKU: 23.9087419

2nd Kit SKU: 23.9942005

Gun Tip SKU: 23.9087300



HF ROAD MARKING GLASS BEAD GUNS/TRIGGERS

Placed on all VEZOS truck mounted line stripers & also offered as an accessory

Dimensions:
Weight (complete):
Operating pressure, air actuated trigger:
Air connection:
Bead connection:
Air consumption:
Spray width:
Glass bead consumption:

65 mm x 65 mm x 190 mm (height with diffuser)
0.9 kg
2.5 bar
1/8" BSP
3/4" nipple
1-2 cfm
50-305 mm (2-12")
1-16 kg/min



Brochures

vezos-brochures Download: VEZOS HF Automatic Pressurized Glass Bead Guns Catalog

vezos-brochures Download: VEZOS Road Marking - Line Striping Catalog
